Specification

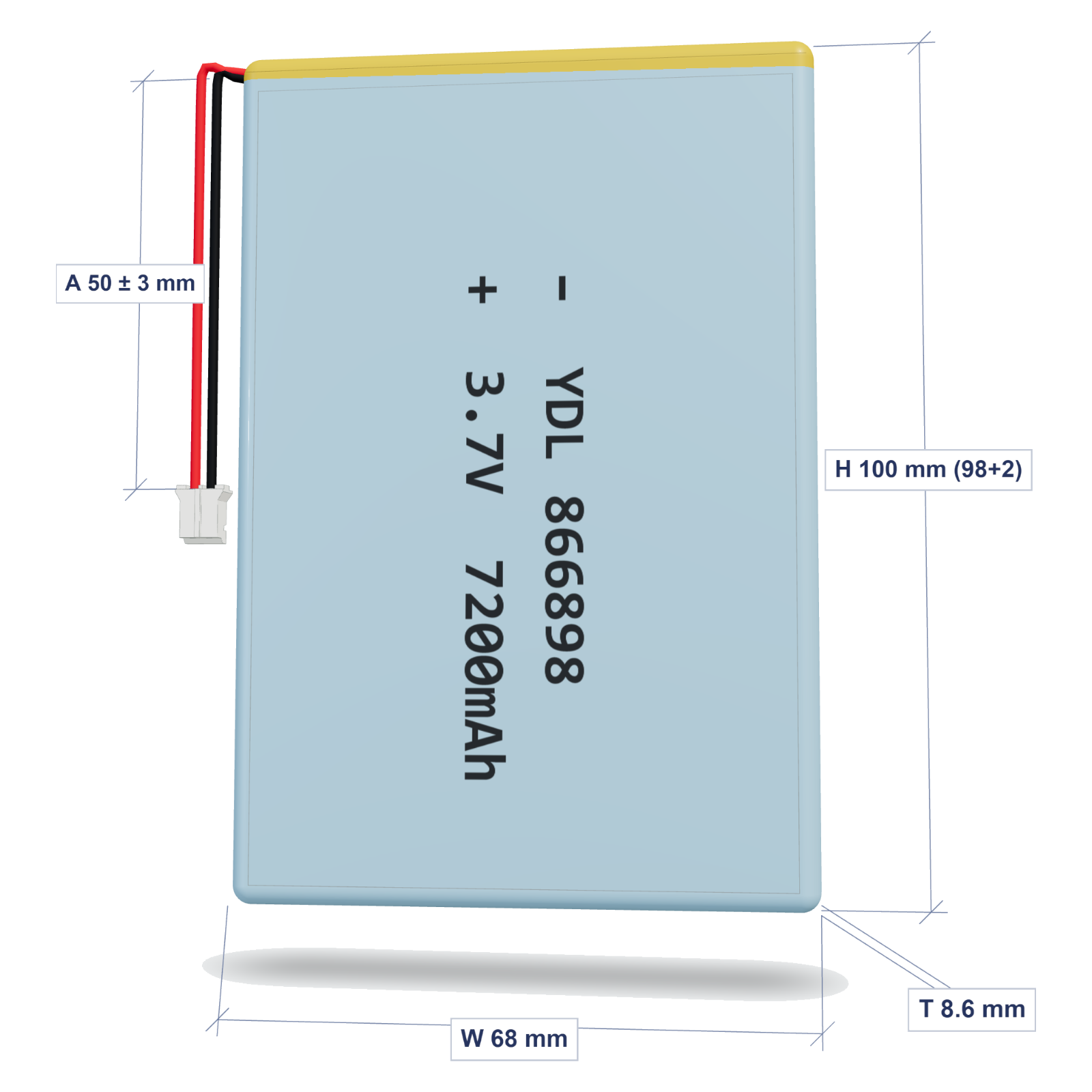

Connector Type: PH2 2.0mm Pitch
Length: 100.0mm
Width: 68.0mm
Thickness: 8.6mm
Capacity: 7200mAh
Charge/Discharge Rate: Standard 0.2C, MAX 1C，PCM restrict 2.5A
Red connect "+", Black connect "-", Fool-proofing not 100% work.
Reversed the polarity before match Adafruit circuit
Datasheet
Description

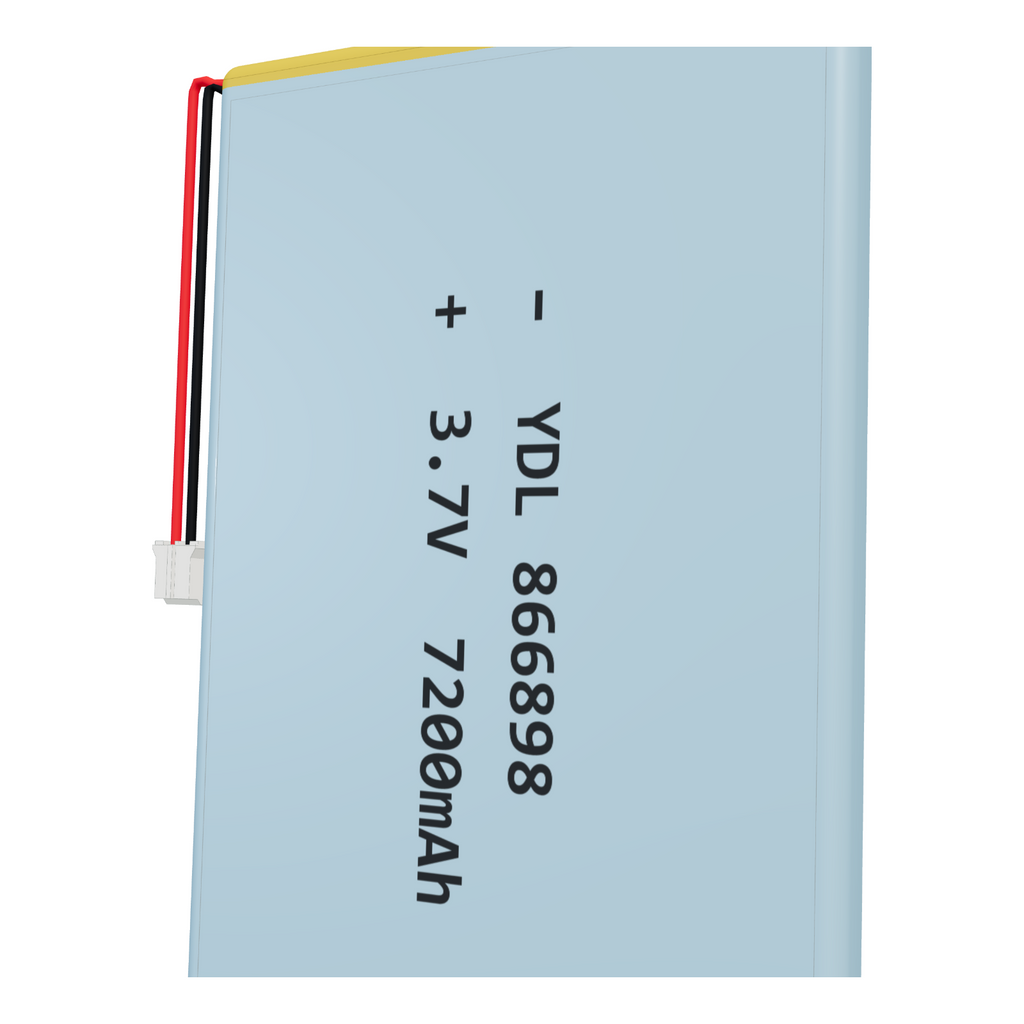

YDL 3.7V 7200mAh 866898 Lipo Battery Rechargeable Lithium Polymer ion Battery Pack with JST Connector
- Voltage: DC 3.7V; Capacity: 7200mAh
- Package Content: 1 x Lithium Polymer Battery
- Material: Lithium Polymer; Net Weight: 136g
- Connector Type: 2P 2.0mm Pitch; Cable Length: 5cm / 2"
- Size: 98 x 68 x 8.6 mm/ 3.86 x 2.68 x 0.34 inch(L*W*T)
Description:
This battery is really the latest state of the art technology in rechargeable. It is extremely thin, light weight and super thin compared to any rechargeable chemistry.Low weight, small size but huge capacity.The other advantage of the Lithium Polymer technology is the very low self discharge .
Features:
* Rechargeable high volume Lithium-ion Battery
* High capability,Lightweight,Low internal resistance
* Excellent safety performance,Excellent discharge performance
* Long cycle time;Can be used in MP3 MP4 GPS PSP PAD and a variety of electronic readers
Applications:
Electrical Teethbrush, MP4, Mobile Phone, MID,baby monitor, small flying helicopters, backup power, Portable DVD, POS machine, Desk vidio, E-BIKE, motor, drill and Digital camera.
Note:
Red connect "+" ,Black connect "-", In order not to damage the battery or shorten battery life, high voltage charging and incorrect connecting of the positive and negative pole is prohibited.
