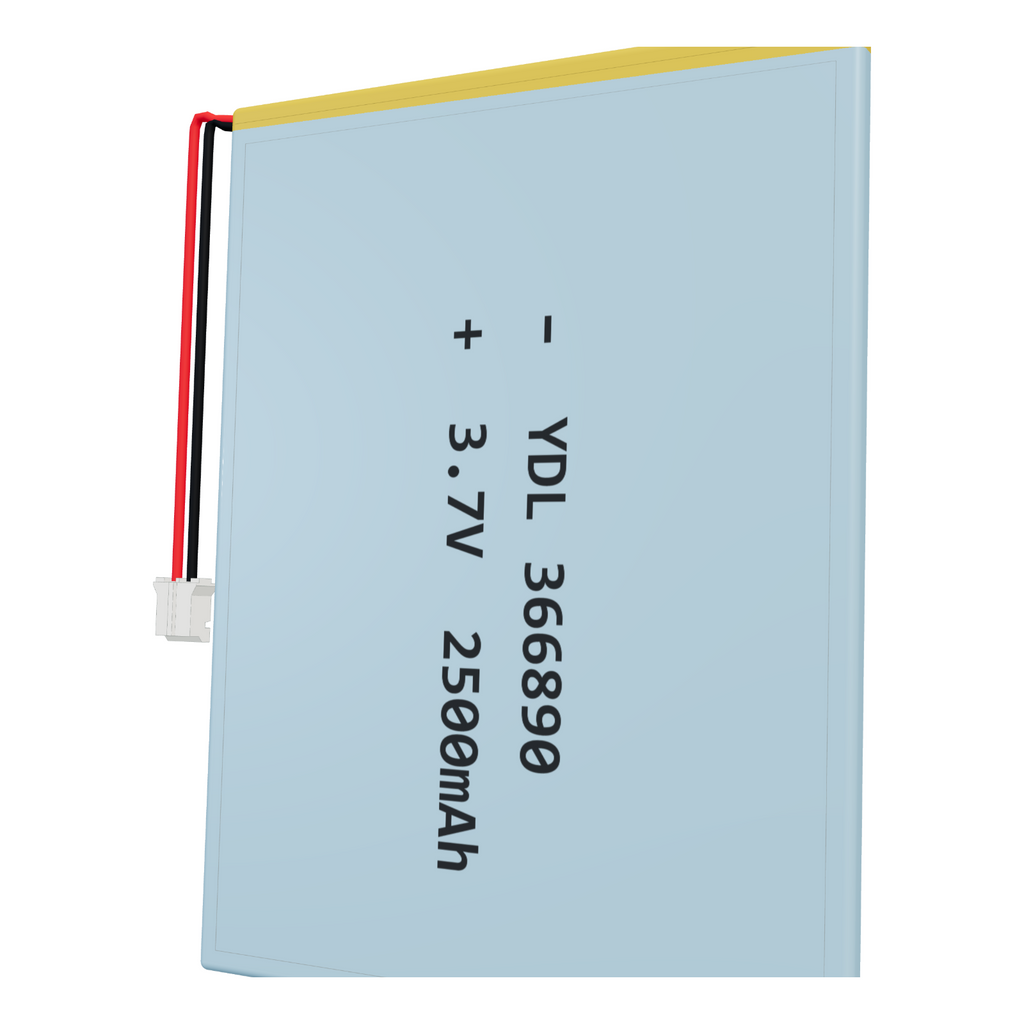

YDL 366890 2500mAh 3.7V lithium polymer battery, 3.6x68x92mm, PH2.0 connector

3.7V 2500mAh 366890 rechargeable lithium polymer battery with JST connector

YDL 3.7V 2500mAh 366890 Rechargeable Lithium Polymer Battery Length 92mm

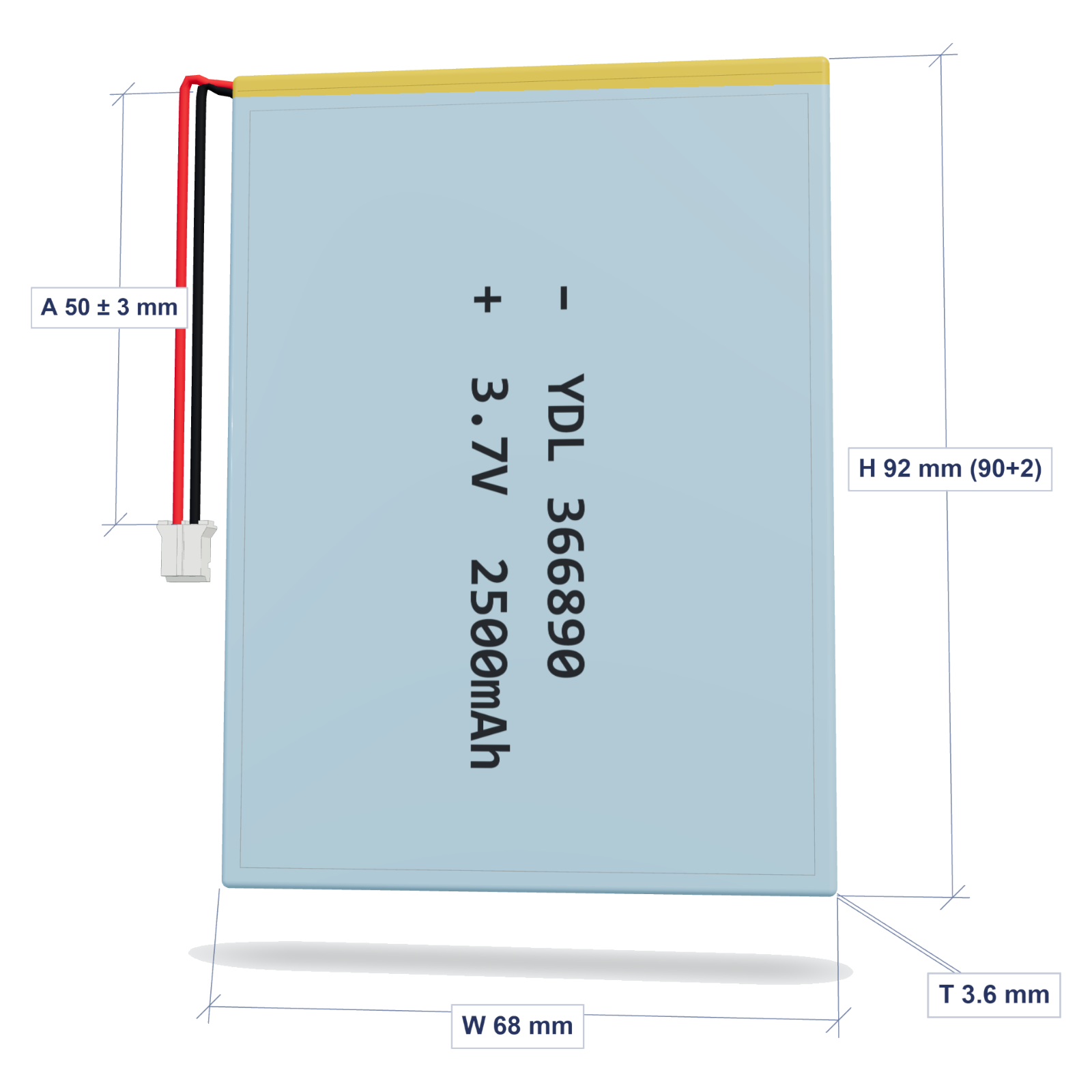

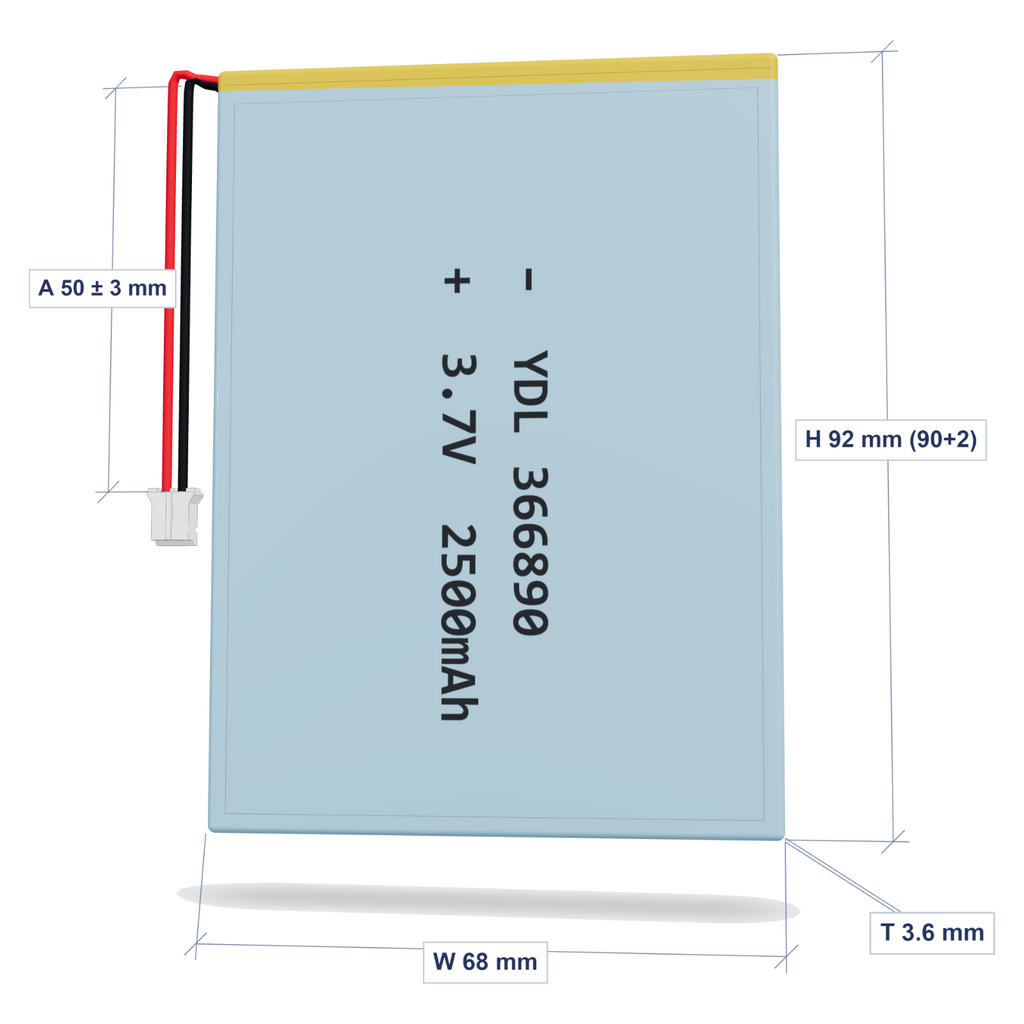

YDL 366890 2500mAh dimensions 3.6x68x92mm, 50mm 26AWG leads

Roll over image to zoom in Click on image to zoom

YDL 366890 2500mAh 3D model, 3.6x68x92mm

YDL 3.7V 2500mAh 366890 Rechargeable Lithium Polymer Battery Length 92mm

Name: YDL 3.7V 2500mAh 366890 Rechargeable Lithium Polymer Battery Length 92mm
Brand: YDL Battery
SKU: YDL366890
Price: 6.60 USD
Availability: InStock

YDL BatterySKU: YDL366890

Price:

$6.60

Quantity:

Volume pricing
Minimum Qty	Discount
4–9	15% ($5.61 USD USD Each)
10–49	25% ($4.95 USD USD Each)
50–99	30% ($4.62 USD USD Each)
100+	40% ($3.96 USD USD Each)

Orders above 100 pcs are quoted on a project basis depending on specifications, certifications, and annual volume.
✔ Volume discounts for bulk orders
✔ OEM / ODM customization supported
✔ Long-term supply contracts available

Share this product

Default Connector Type: PH2 2.0mm Pitch

Cycles Life:

Max Hight: 92.0mm

Width: 68.0mm

Thickness: 3.6mm

Capacity: 2500mAh

Charge/Discharge Rate: Standard 0.5C, Max. 1C, PCM limit 2.5A

Polarity: Red “+”, Black “−”. Please confirm polarity before use.

Not suitable for high-drain devices, such as RC cars, drones, or motor-driven equipment.

Download Datasheet

YDL 3.7V 2500mAh 366890 Lipo Battery Rechargeable Lithium Polymer ion Battery Pack with JST Connector

Voltage: DC 3.7V; Capacity: 2500mAh
Package Content: 1 x Lithium Polymer Battery
Material: Lithium Polymer; Net Weight: 67g
Connector Type: 2P 2mm Pitch; Cable Length: 5cm / 2"
Size: 90 x 68 x 3.6 mm/ 3.54 x 2.68 x 0.14 inch(L*W*T)

Description:
This battery is really the latest state of the art technology in rechargeable. It is extremely thin, light weight and super thin compared to any rechargeable chemistry.Low weight, small size but huge capacity.The other advantage of the Lithium Polymer technology is the very low self discharge .

Features:
* Rechargeable high volume Lithium-ion Battery
* High capability,Lightweight,Low internal resistance
* Excellent safety performance,Excellent discharge performance
* Long cycle time;Can be used in MP3 MP4 GPS PSP PAD and a variety of electronic readers

Applications:
Electrical Teethbrush, MP4, Mobile Phone, MID,baby monitor, small flying helicopters, backup power, Portable DVD, POS machine, Desk vidio, E-BIKE, motor, drill and Digital camera.

Note:
Red connect "+" ,Black connect "-", In order not to damage the battery or shorten battery life, high voltage charging and incorrect connecting of the positive and negative pole is prohibited.

YDL battery has over 10 professional engineers and technical staff who can provide polymer lithium battery solutions for you. As a lithium battery manufacturer, we are capable of rapid design, customization, and bulk production. Here are the main characteristics of our company:
1、Source manufacturer, strong factory, and powerful design and development capabilities.
2、Short delivery time and sufficient inventory.

3、Self-produced, sufficient capacity, refuse false labeling, and guarantee capacity.
4、Strict quality control through a full range of quality systems from raw materials to finished products.
5、Our products meet (KC,UL,CB,PSE,UN38.3,Rosh）and meet various international battery standards, we help many customers to do certifications.
6、Our team of professional foreign trade sales engineers can quickly respond to customer inquiries and provide solutions
